Large or difficult-to-handle bags can require an upright sealing station with suitable support beneath the pack. The right arrangement depends on bag dimensions, filled weight, product behavior and available utilities. Define the operating environment before selecting the machine, especially where the site has additional equipment-approval requirements.
How should the bag handling arrangement be defined?
Measure the filled bag height and width, the open-mouth condition and the material layers at the intended seal. Include gussets and folds. Explain whether the bag arrives on a conveyor, pallet or trolley and how it leaves after sealing. The machine's adjustment range should be checked against the complete handling sequence.

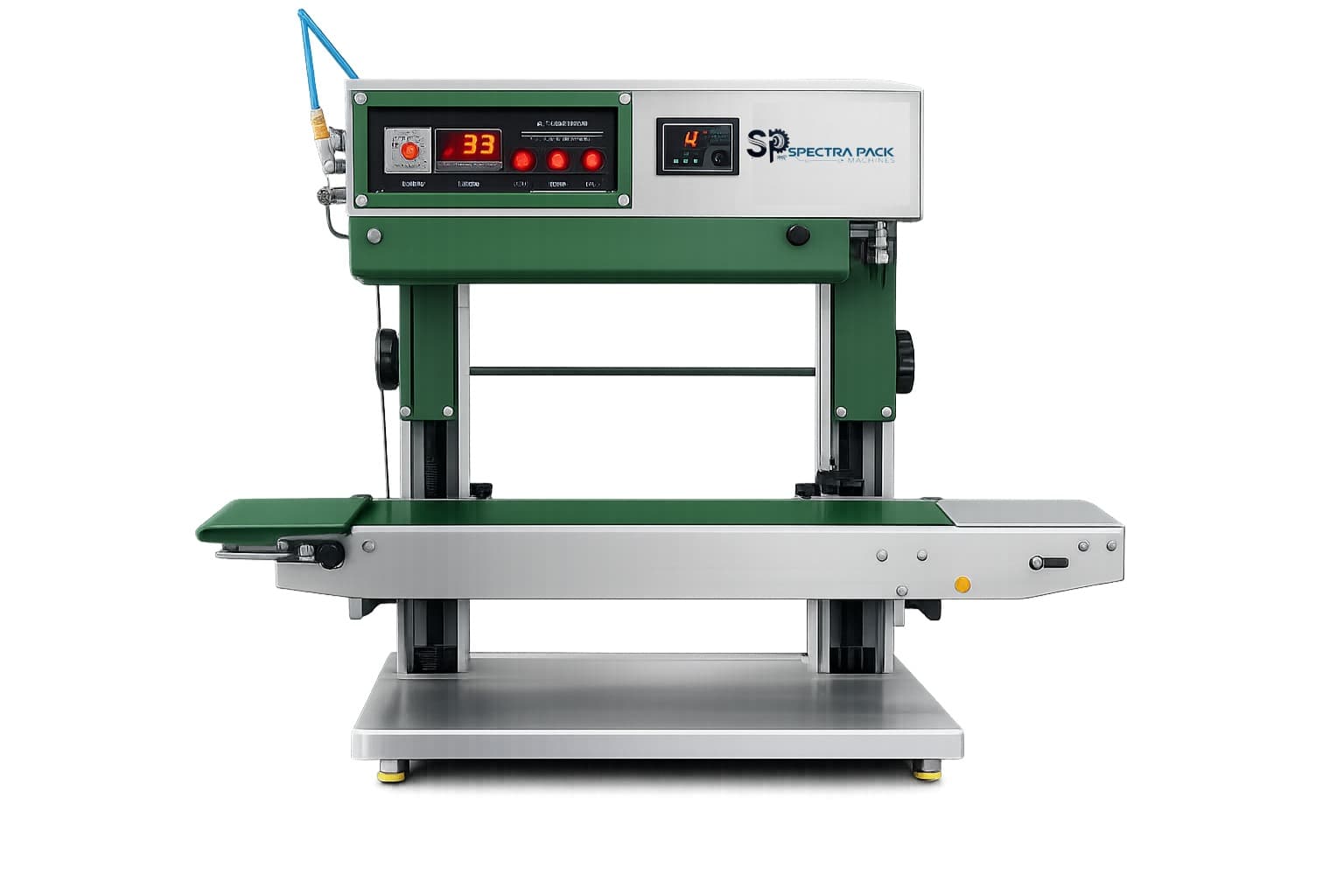

Compare a vertical band sealer, mobile sealing format and the pneumatic vertical sealing machine according to that sequence. Ask the supplier which format can support the bag and achieve the required seal with your materials.
Which utilities need confirmation?
For pneumatic equipment, obtain the required air pressure, quality, consumption and connection specification for the quoted configuration. Ask how the equipment responds to air or electrical supply loss and how operators safely restart it. Confirm the work height and any supporting conveyor or lifting aid at the same time.
The catalog's flame-proof product name is not proof that a proposed unit is approved for a particular hazardous area. If the site requires such suitability, have the responsible site specialist supply the classified-area specification. Request and review the exact equipment documentation with the supplier before approving the application; do not substitute a general website description for that review.
What should the enquiry package contain?
- Product and bag material information relevant to sealing and handling.
- Filled weights, bag range, arrival method and target output.
- Available electrical and pneumatic utility specifications.
- Site environmental requirements and responsible engineering contact.
- Desired seal inspection, cleaning and maintenance access.
How should the layout be agreed?
Use custom design to review bag support, transfer heights, operator reach and guarding. Trial the most difficult bag, not just the easiest sample. Document the approved material, configuration and operating limits through application consultation so purchasing, installation and production teams work from the same requirements.
